1-Piece Forged Track Wheels for GR86 / Subaru BRZ Platform | JDM Track Series
Unleash precision handling and aggressive motorsport presence with our bespoke 1-Piece Forged Track Wheels for GR86 / Subaru BRZ Platform. Precision-machined from aerospace-grade 6061-T6 forged aluminum under 10,000 tons of hydraulic pressure, the VX-1J05B JDM Track Series features an ultra-stiff 5-spoke motorsport design engineered to handle extreme lateral G-forces while shedding critical unsprung mass for faster throttle response and precise turn-in.
Key Features of VeroX 1-Piece Forged Track Wheels
- Featherweight Motorsport Architecture: 1-piece 6061-T6 monoblock forged construction reduces unsprung weight down to approximately 17–19 lbs per wheel, significantly improving transient response, suspension compliance, and braking distance.
- High-Rigidity 5-Spoke Track Profile: Classic JDM stepped-lip 5-spoke architecture provides optimal stress distribution, rapid brake heat dissipation, and iconic competition aesthetics with yellow spoke accents.
- Big Brake Kit (BBK) Clearance: Specifically engineered 3D CAD spoke curvature provides generous caliper clearance for factory Brembo brake kits, AP Racing Radi-CAL, StopTech, and aftermarket track BBKs without requiring spacers.
- Direct Hub-Centric Precision: Dedicated 56.1mm hub-centric fitment for Subaru BRZ / GR86 (or custom bores for other sports cars) for 100% vibration-free high-speed track stability.

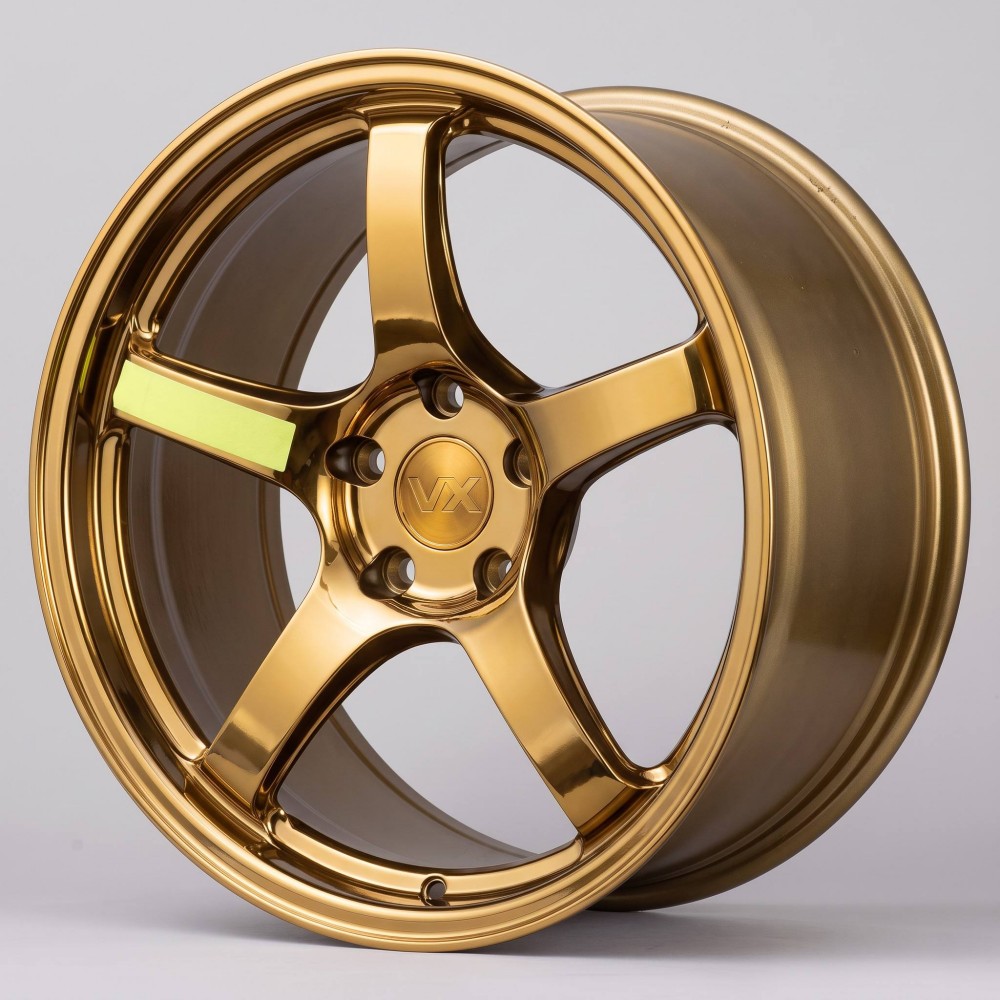

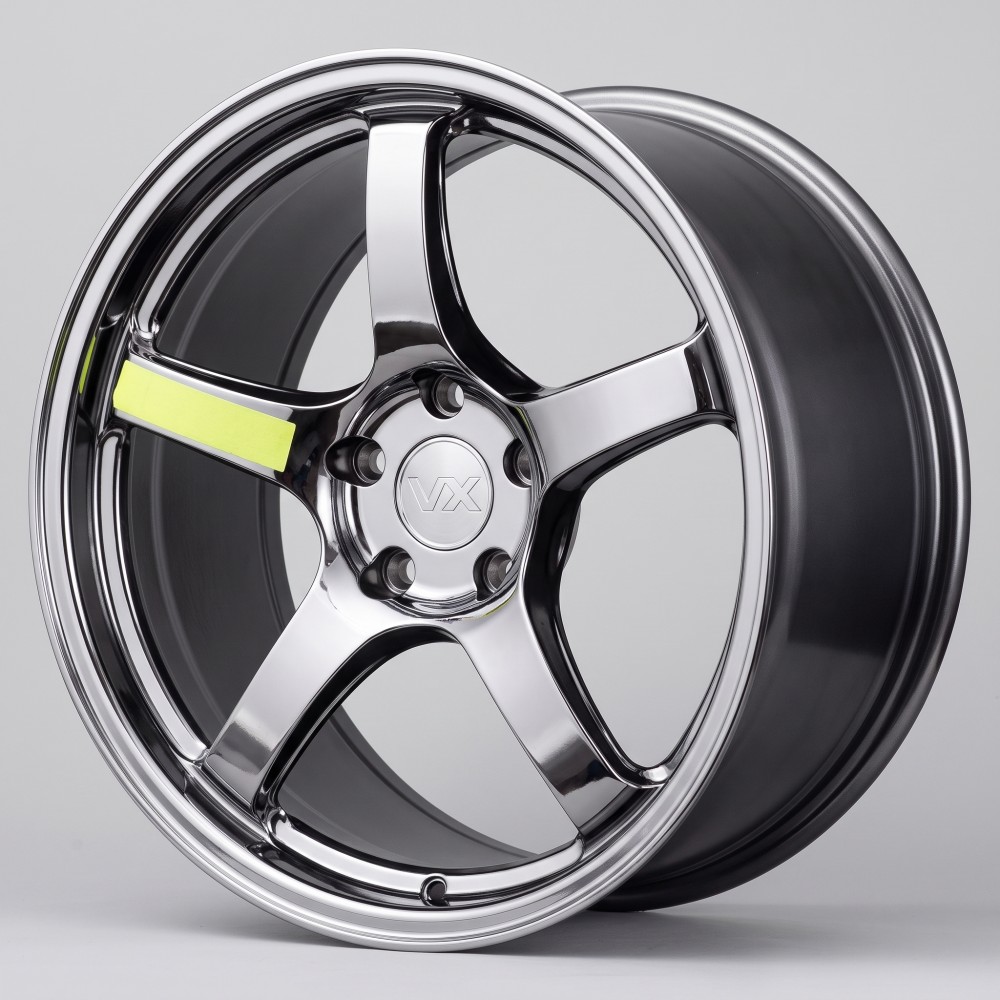

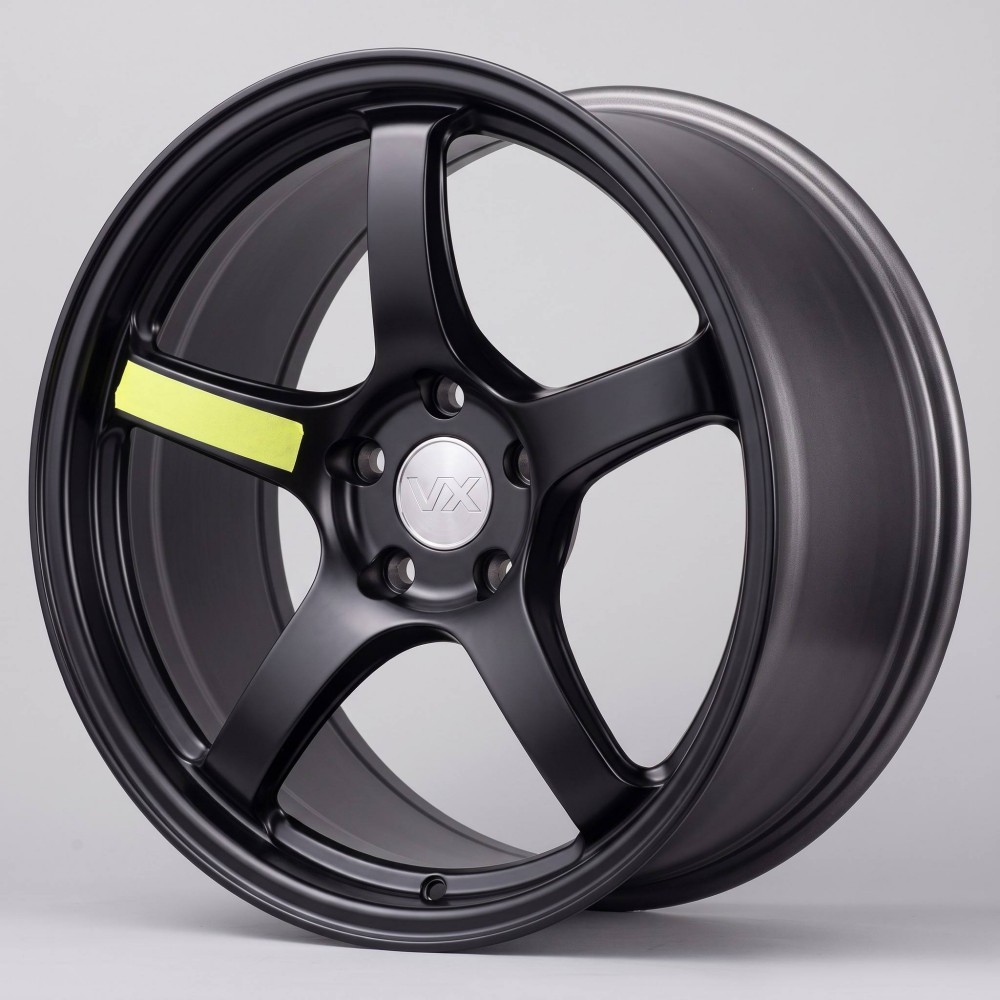

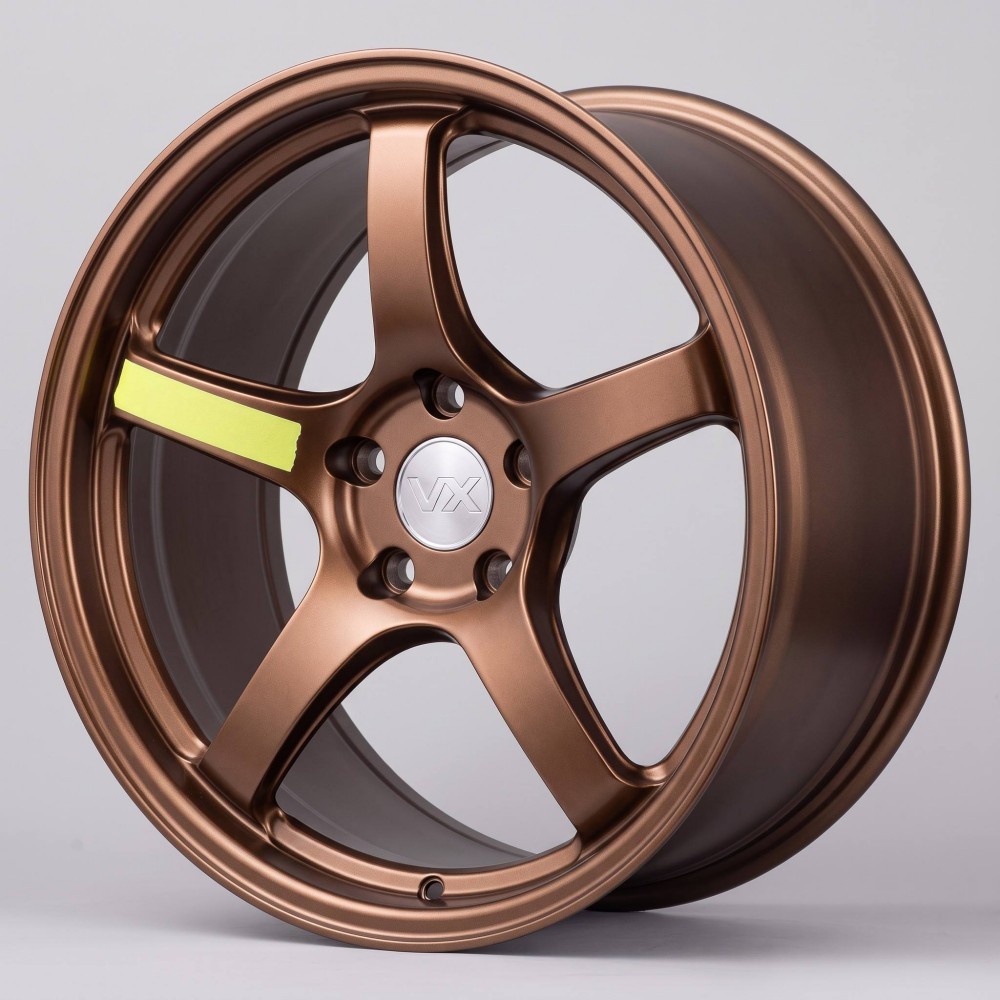

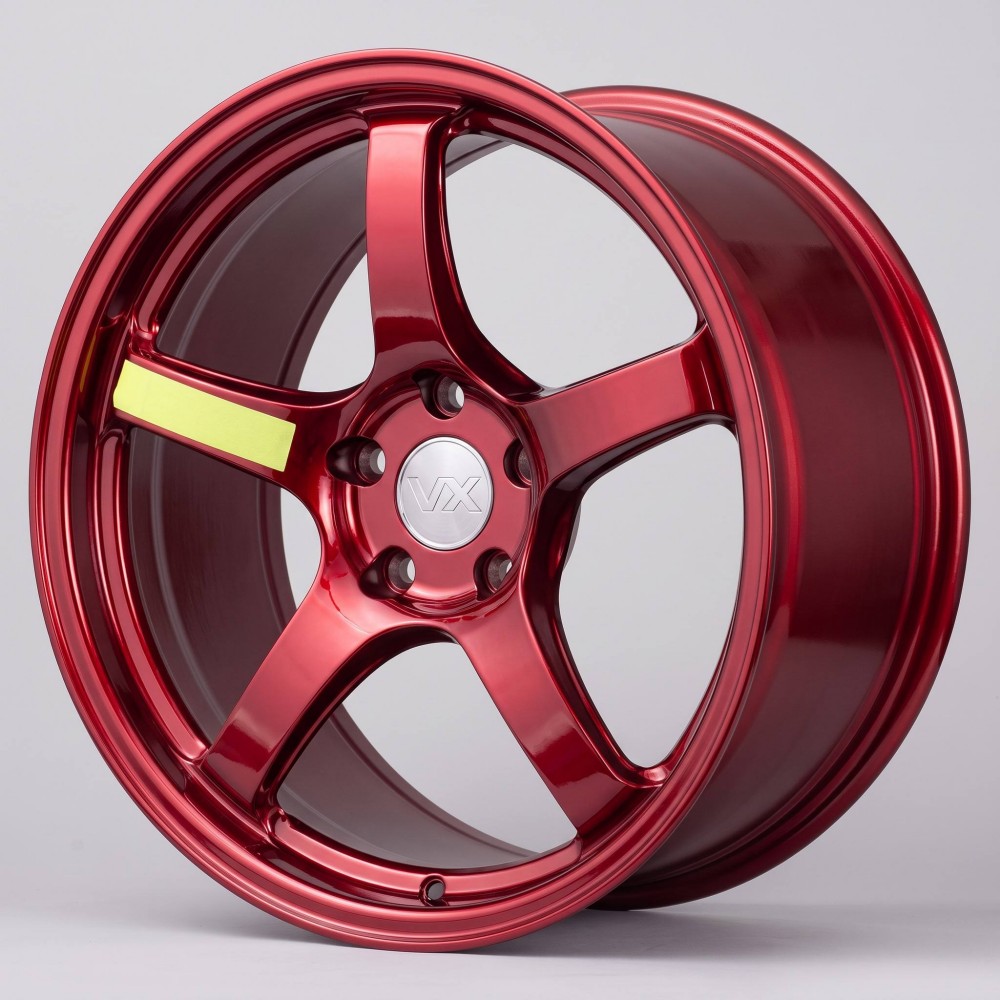

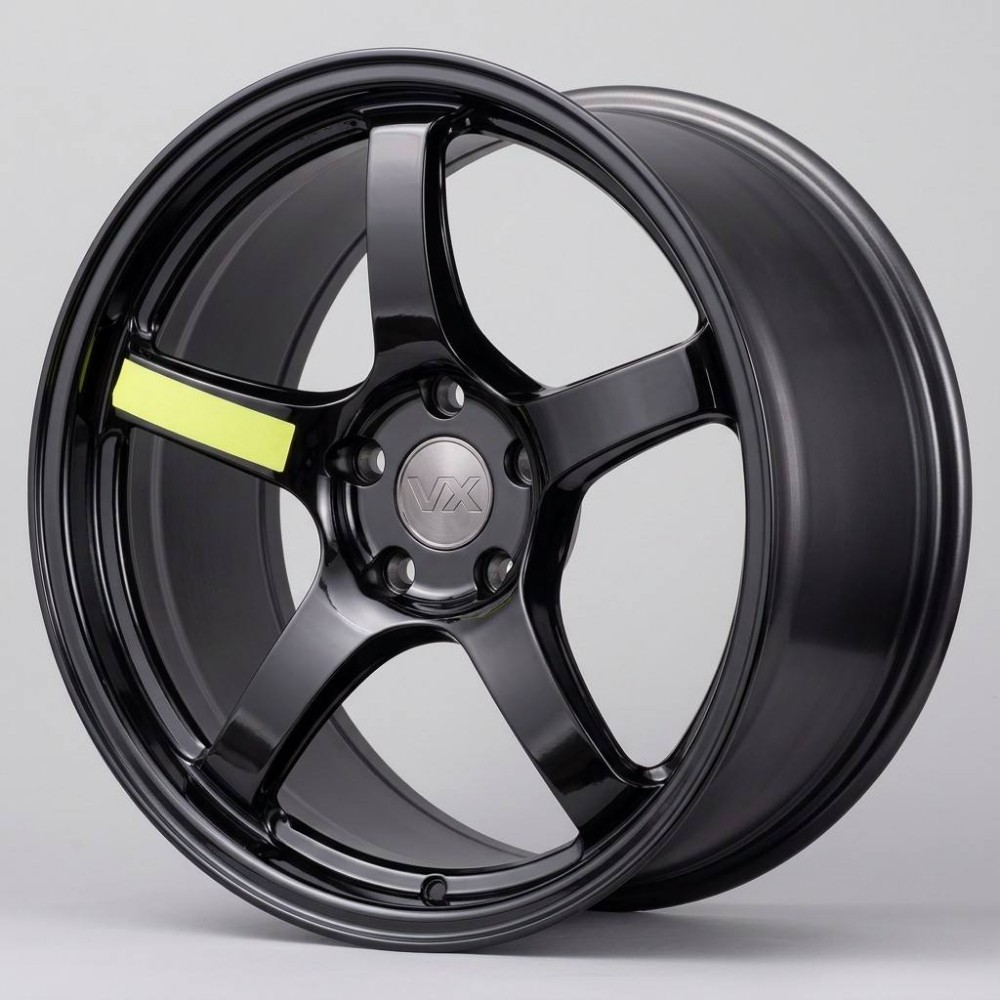

- Track-Durable Bespoke Finishes: Available in Gunmetal Grey, Gloss Gold, Track Bronze, Piano Gloss Black, Satin Matte Black, Racing Red, and Brushed Silver with heat-resistant clear coats.
Detailed Technical Specifications
| Parameter | Specification Details |
|---|---|
| Design & Series | 1-Piece Monoblock Forged / 5-Spoke Stepped Lip (VX-1J05B JDM Track Series) |
| Material Grade | Aerospace 6061-T6 Forged Aluminum Alloy (10,000-Ton Forged) |
| Standard Diameters | 17″, 18″, 19″ (Popular Track Setup: 18×8.5J ET+38 or 18×9.5J ET+40 Square Fitment for GR86 / BRZ) |
| Width Range | 7.5J to 10.5J (Square Track & Staggered Street Profiles) |
| Bolt Pattern (PCD) | 5×100 (GR86 / BRZ / GT86), 5×114.3 (WRX / Civic Type R), 5×112, 5×120 & Fully Custom PCD |
| Offset (ET) | ET+25 to ET+48 (CNC-machined for flush fender stance with zero coilover contact) |
| Center Bore (CB) | 56.1mm (Subaru / Toyota Direct Hub-Centric) / Custom Bores Available |
| Finish Choices | Gunmetal Grey, Gloss Gold, Track Bronze, Piano Black, Satin Black, Racing Red, Brushed Silver |
These high-rigidity 1-Piece Forged Track Wheels are finite element analysis (FEA) verified to resist rim deflection during high-grip cornering, making them the ultimate setup for autocross, track days, and spirited street driving.
Vehicle Fitment & Customization Guide
Engineered natively for Toyota GR86 (ZN8), Subaru BRZ (ZD8), Scion FR-S, and Toyota GT86 (ZN6). In addition to 5×100 platforms, this lightweight 5-spoke design can be custom CNC-machined for other sports platforms:
- Toyota & Subaru: GR86, BRZ, GT86, WRX STI (5×114.3), Forester XT
- Honda & Acura: Civic Type R (FL5 / FK8), Integra Type S, S2000 (AP1/AP2)
- Nissan & Mazda: Nissan 350Z / 370Z / Fairlady, Mazda Miata MX-5 (NC/ND 4×100 / 5×114.3)
- European Hot Hatches: VW Golf GTI / Golf R (Mk7/Mk8), Audi S3, BMW 2-Series (M240i / M2)
Every set of 1-Piece Forged Track Wheels for GR86 / Subaru BRZ Platform is bespoke machined to match your exact suspension geometry (lowered springs, coilovers, or camber plates) for optimal tire clearance and zero fender rubbing.
Frequently Asked Questions (FAQ)
Q: What is the recommended track wheel size for a Toyota GR86 or Subaru BRZ?
A: The most popular flush track setup is 18×8.5J ET+38 (paired with 235/40 R18 tires) for stock suspension, or 18×9.5J ET+40 (paired with 245/35 R18 or 255/35 R18 tires) on vehicles equipped with aftermarket coilovers and negative camber.
Q: Can these 1-Piece Forged Track Wheels clear the factory Brembo brake package?
A: Yes. The 3D curved 5-spoke profile is engineered with generous caliper clearance specifically to clear OEM 4-piston Brembo calipers on the GR86/BRZ Performance Package as well as aftermarket AP Racing Radi-CAL BBKs without spacers.
Q: Are these forged wheels compatible with OEM TPMS sensors?
A: Yes, all valve stem locations are CNC-machined to accommodate OEM Subaru / Toyota factory tire pressure monitoring sensors (TPMS) as well as aftermarket clamped valve stems.
Q: What load ratings and safety standards do these track wheels meet?
A: Every wheel is engineered and rigorously impact-tested to meet or exceed JWL and VIA standards, SAE J2530, and DOT regulations with motorsport-grade impact resistance.
Looking for aggressive offsets or alternate bolt patterns? Browse our full catalog of 1-Piece Forged Track Wheels or contact our fitment engineers for a personalized 3D CAD proposal.
