Description
Monoblock Concave Forged Wheels 5×112 for Audi RS6 RS5 | Custom Performance Rims
Elevate your driving dynamics and aggressive stance with our bespoke Monoblock Concave Forged Wheels 5×112 for Audi RS6 RS5 and RS7 Sportback. Precision-machined from aerospace-grade 6061-T6 forged aluminum under 10,000 tons of hydraulic pressure, the VX-1F01 Fin Sport Series features a lightweight multi-spoke concave architecture designed to handle high horsepower loads while significantly reducing unsprung rotational mass for sharper acceleration and cornering precision.
Key Features & Performance Advantages
- Ultra-Lightweight Monoblock Architecture: 1-piece forged 6061-T6 aluminum construction cuts unsprung weight by up to 25% compared to OEM cast wheels, improving brake response and suspension agility.
- Aggressive Concave Multi-Spoke Profile: Elegant multi-fin spoke layout enhances brake heat dissipation and structural rigidity while delivering a flush, motorsport-inspired presence.
- Big Brake Kit (BBK) Clearance: Specifically engineered 3D CAD backspacing provides generous clearance for massive OEM Audi RS steel brakes and large Carbon Ceramic Brakes (CCB) without spacers.
- Direct 5×112 Hub-Centric Fitment: Tailored with a dedicated 66.5mm / 66.6mm center bore (or custom bore sizes) for 100% vibration-free, direct bolt-on installation.

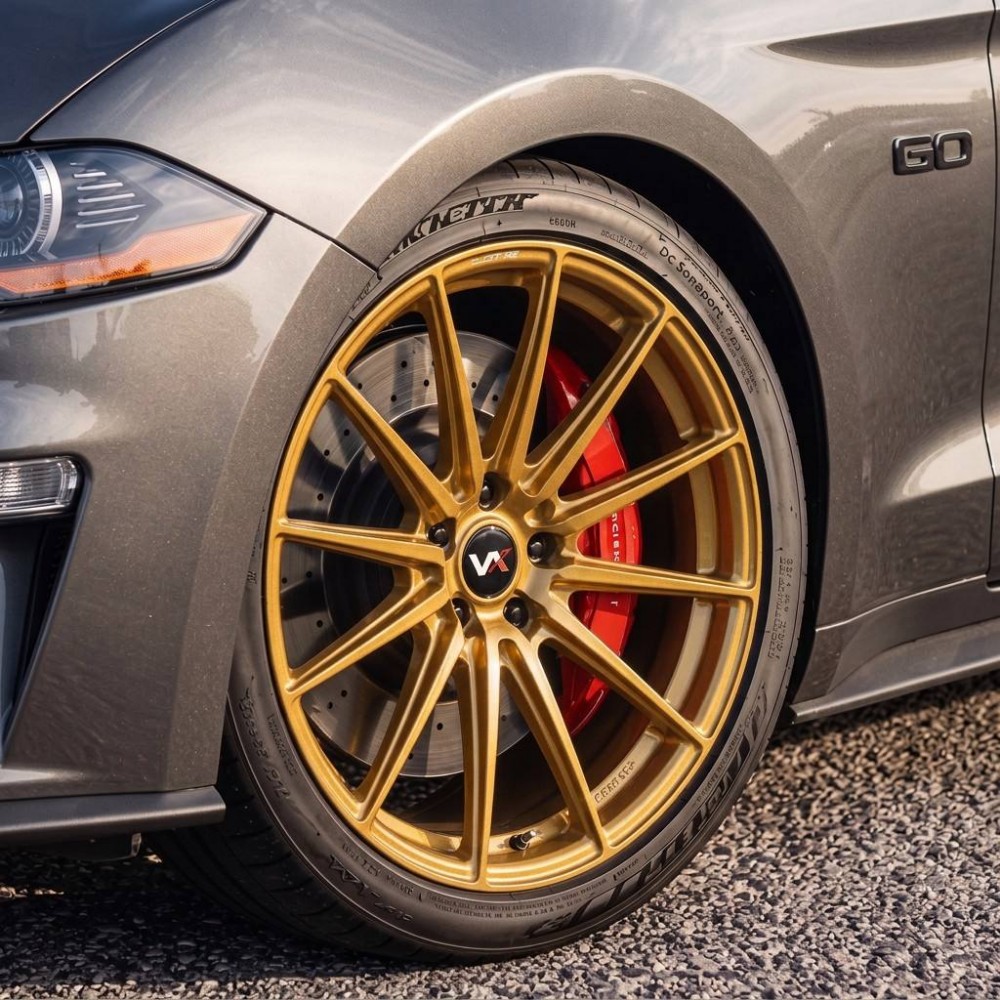

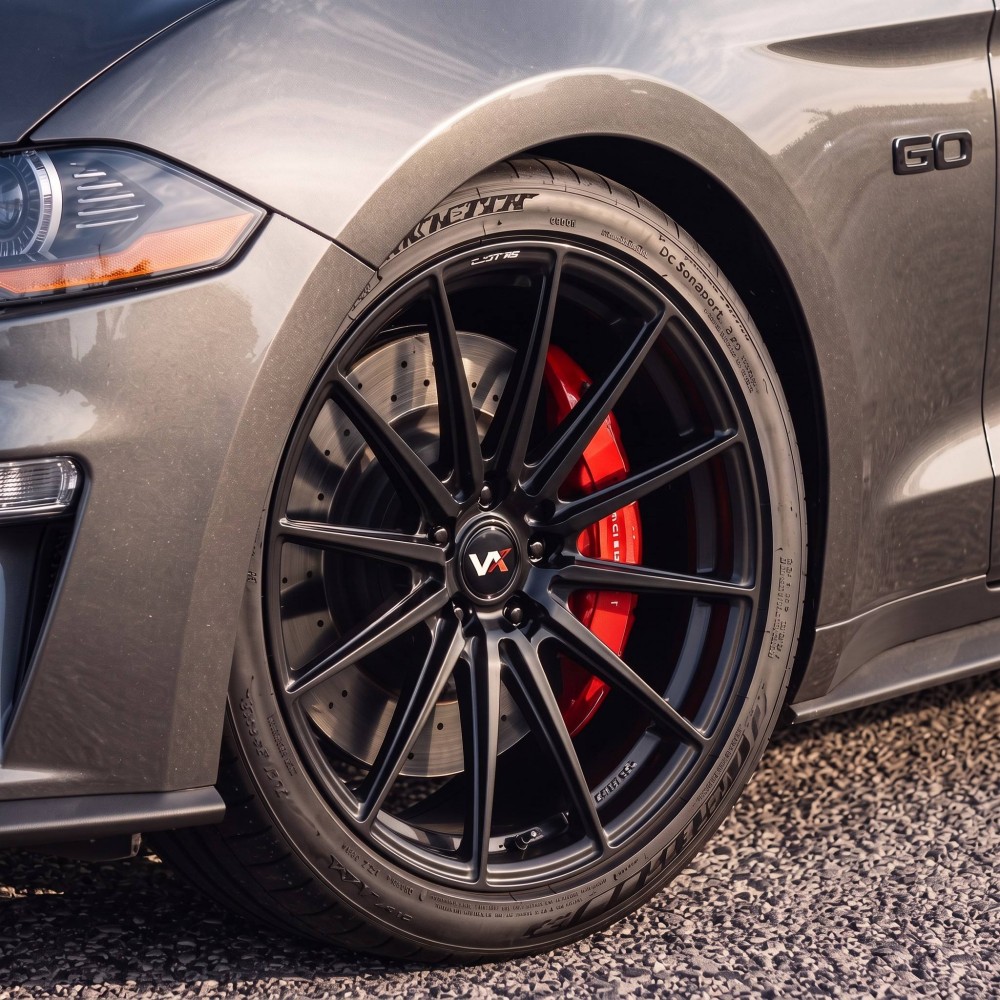

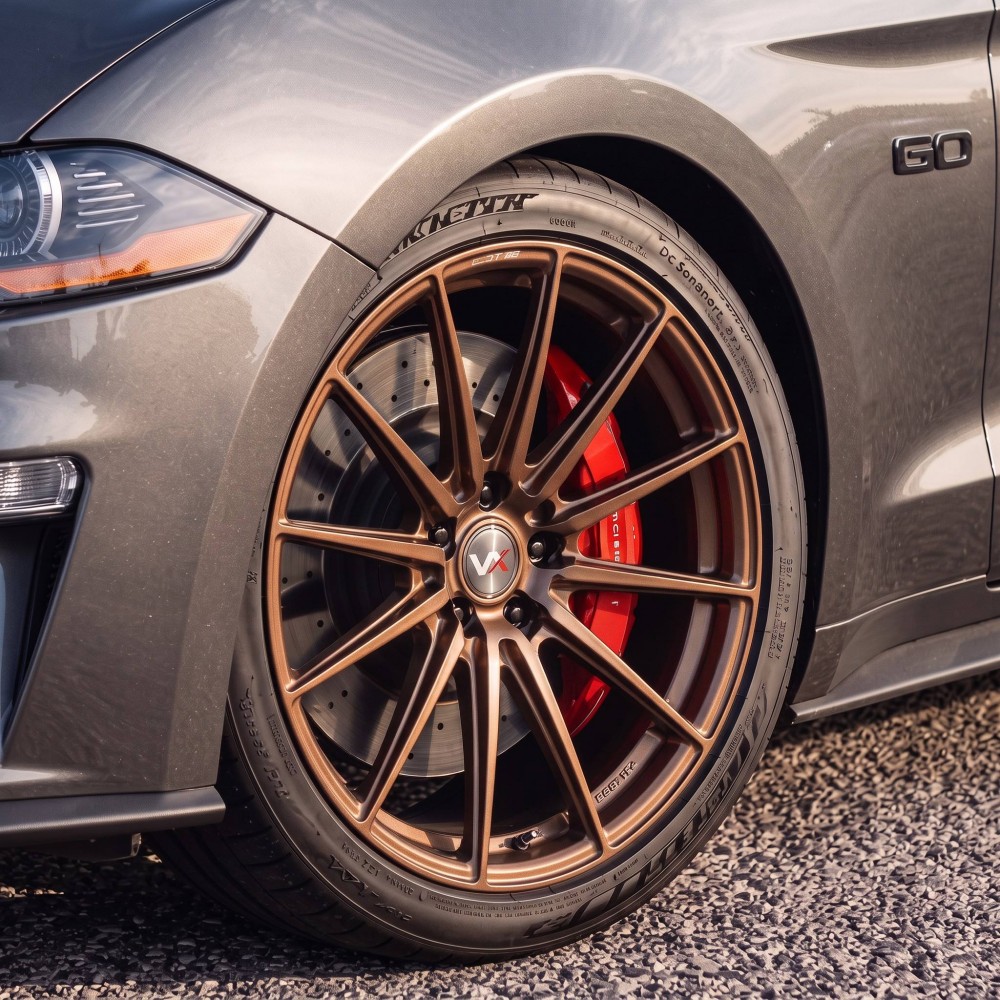

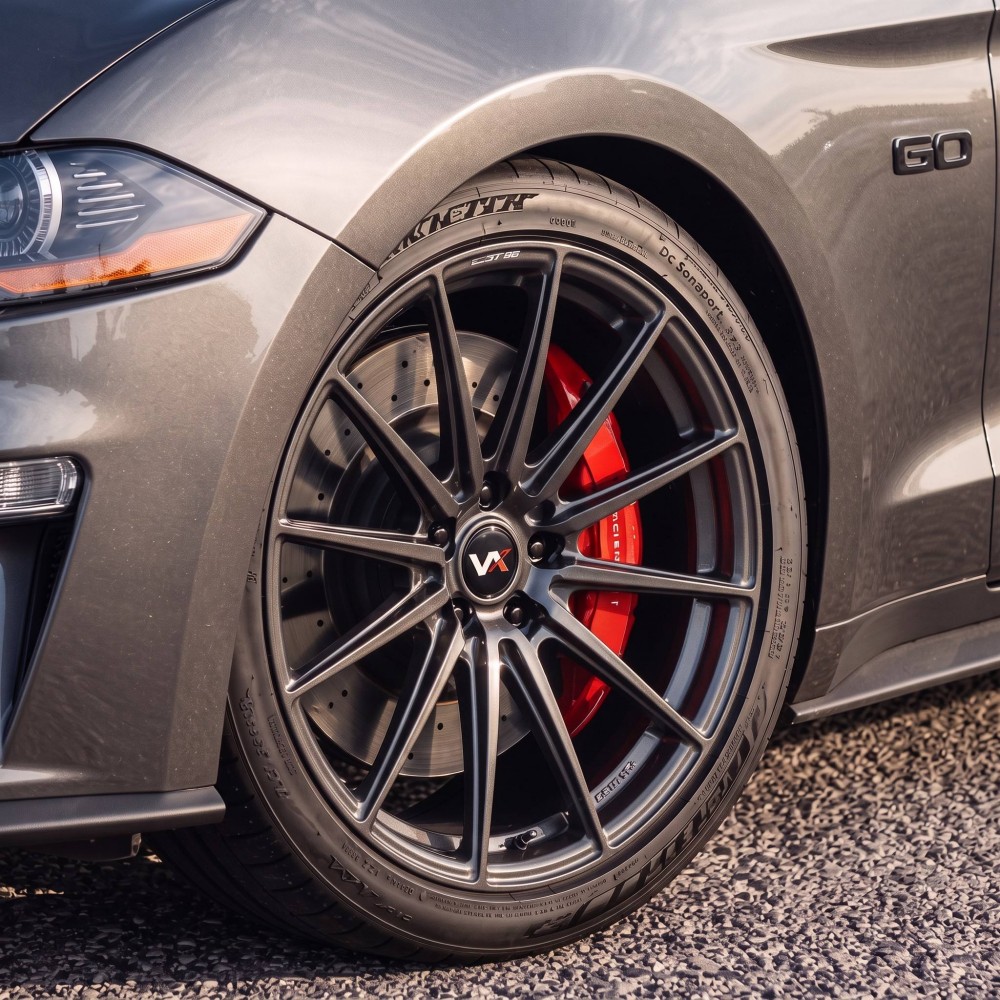

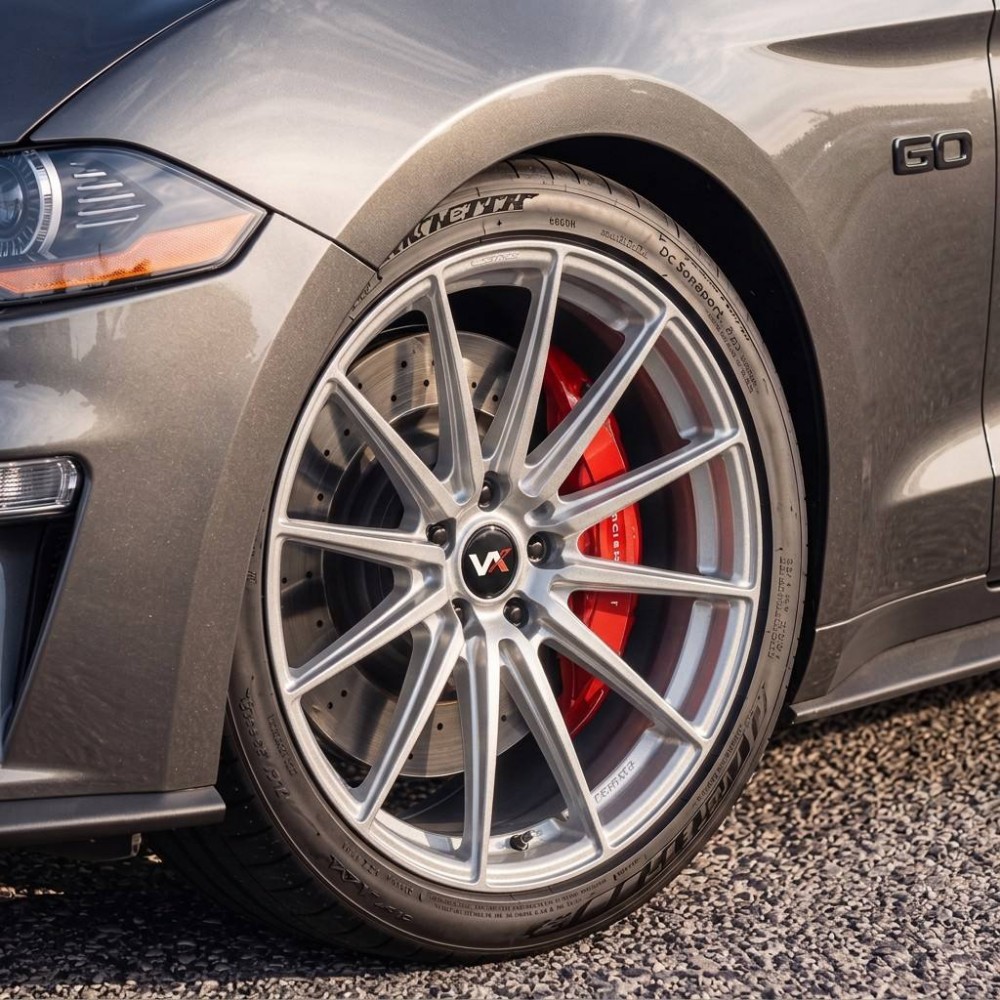

- Bespoke Hand-Crafted Finishes: Available in Gloss Gold, Piano Gloss Black, Hyper Silver, Satin Matte Black, Anthracite Gunmetal Grey, Translucent Candy Red, and Satin Bronze with UV-resistant ceramic clear coats.
Detailed Technical Specifications
| Parameter | Specification Details |
|---|---|
| Design & Series | 1-Piece Monoblock Forged / Multi-Spoke Concave (VX-1F01 Fin Sport Series) |
| Material | Aerospace 6061-T6 Forged Aluminum Alloy (10,000-Ton Forged) |
| Available Diameters | 19″, 20″, 21″, 22″ (Popular Setup: 21×10.5J or 22×10.5J for RS6 C8 / 20x10J for RS5 B9) |
| Width Range | 8.5J to 12.0J (Custom Concave & Deep Concave Profiles) |
| Bolt Pattern (PCD) | 5×112 (Audi RS / Mercedes-AMG / BMW G-Series), 5×120, 5×114.3, 5×130 & Fully Custom PCD |
| Offset (ET) | ET+12 to ET+45 (CNC-machined for guaranteed flush fender stance) |
| Center Bore (CB) | 66.5mm / 66.6mm (Direct Hub-Centric Fitment) / Custom Bores Available |
| Finish Options | Gloss Gold, Piano Black, Hyper Silver, Satin Black, Gunmetal Grey, Candy Red, Satin Bronze |
These high-performance Monoblock Concave Forged Wheels deliver exceptional structural strength and track-proven durability, whether carving canyon roads or driving daily in luxury sport wagons.
Vehicle Fitment & Customization Guide
Engineered natively for Audi RS6 Avant (C7/C8), RS5 Coupe/Sportback (B8/B9), RS7 Sportback, S5, S6, and Audi RS4, this multi-spoke concave profile can also be tailored for other performance platforms:
- Audi: RS6 Avant (C8), RS7 Sportback, RS5 (B9), RS4 Avant, S6, S5, SQ5, R8
- Mercedes-AMG: C63 / C63S (W205), E63S (W213), AMG GT 4-Door, CLS63
- BMW: M340i, M550i, 5-Series (G30), M5 (F90) 5×112 PCD
- Volkswagen & Porsche: Golf R (Mk7/Mk8), Porsche Macan (5×112 PCD)
Each set of Monoblock Concave Forged Wheels 5×112 is CNC-machined to order, verifying your exact brake rotor dimensions, suspension clearance, and desired flush stance with zero fender rubbing.
Frequently Asked Questions (FAQ)
Q: What is the optimal fitment spec for an Audi RS6 C8 Avant?
A: For the widebody RS6 C8 Avant, the recommended flush stance is 22×10.5J with an offset around ET+15 to ET+18, paired with 285/30 R22 tires for an aggressive track look without rubbing.
Q: Can I order these Monoblock Concave Forged Wheels for a Mercedes-AMG or BMW?
A: Yes. Because every set is made to order from 6061-T6 aluminum billets, our engineers can customize the bolt pattern (PCD 5×112, 5×120, etc.), center bore, and offset to match Mercedes-AMG, BMW, or Porsche specifications perfectly.
Q: Are these forged wheels compatible with OEM Audi center caps and TPMS?
A: Yes, our wheels support both our custom machined center caps and OEM Audi hub caps, and all valve holes are fully compatible with factory tire pressure monitoring sensors.
Q: What load ratings and safety certifications do these Monoblock Concave Forged Wheels feature?
A: Every wheel is engineered to meet or exceed JWL, VIA, SAE J2530, and DOT standards with high load ratings suitable for heavy high-performance wagons and luxury GT sedans.
Looking for staggered setups or alternative finishes? Explore our full catalog of Monoblock Concave Forged Wheels or contact our fitment engineers for a tailored 3D CAD proposal.
