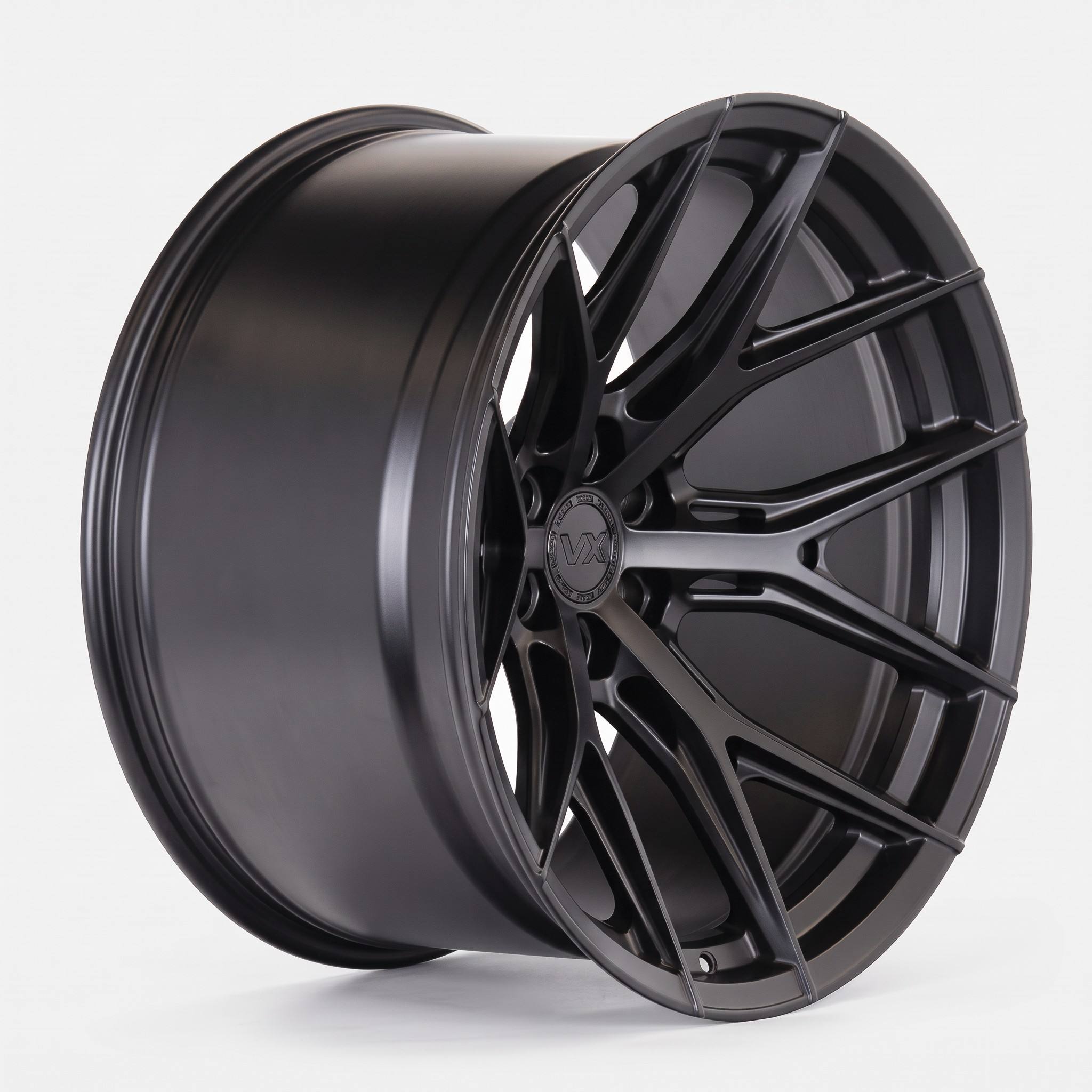

Custom Monoblock 1-Piece Forged Wheels for BMW M2 G87 M3 G80 | Deep Concave Series
Upgrade your track stance and street performance with our bespoke Lightweight 1-Piece Forged Wheels for BMW M2 G87 M3 G80 and M4 G82 Competition. Precision-crafted from aerospace-grade 6061-T6 forged aluminum under 10,000 tons of extreme forging pressure, the VX-1DC01 series combines an aggressive split Y-spoke profile with an ultra-deep concave barrel. Engineered to minimize unsprung rotational mass while maximizing torsional rigidity, these high-strength forged alloy wheels deliver razor-sharp turn-in response and perfect fender flushness.
Key Features & Performance Advantages
- Ultra-Lightweight Monoblock Construction: Precision CNC-machined from a solid 6061-T6 forged aluminum billet, reducing unsprung rotational weight by 20–25% over OEM cast wheels to dramatically enhance throttle and damper response.
- Signature Deep Concave Architecture: Extended split Y-spoke geometry arcs aggressively toward the hub, delivering maximum concave depth and visual width without compromising brake clearance.
- Big Brake Kit (BBK) & CCB Clearance: 3D CAD backspacing engineered specifically to clear massive OEM BMW M-Compound brakes, M-Carbon Ceramic Brakes (CCB), and aftermarket multi-piston big brake kits (Brembo, AP Racing, StopTech).
- Vibration-Free Hub-Centric Machining: Direct hub-centric fitment (standard 66.6mm for BMW G-chassis, with custom hub bores precision-bored to your vehicle’s exact hub lip) eliminating the need for centering rings or wheel spacers.

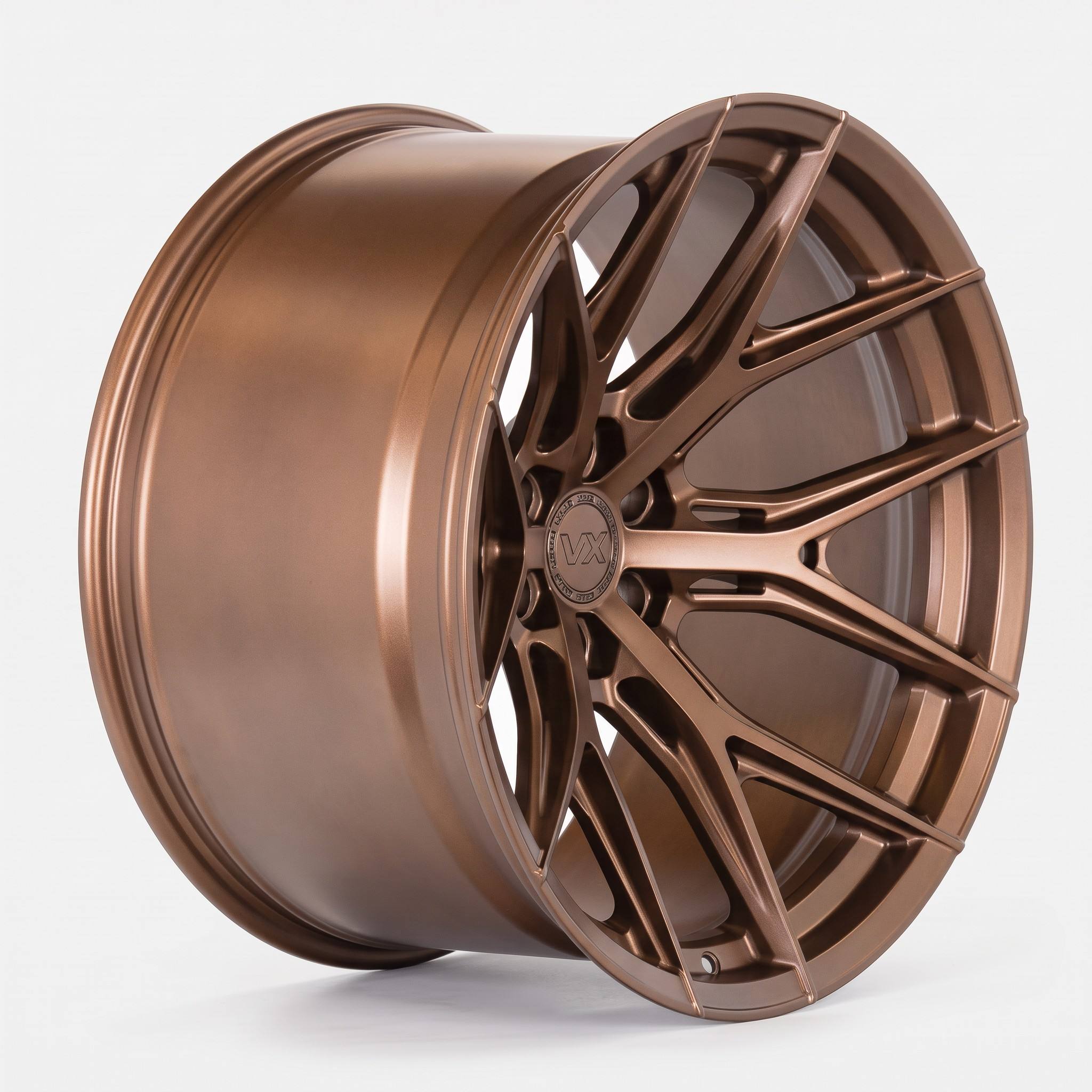

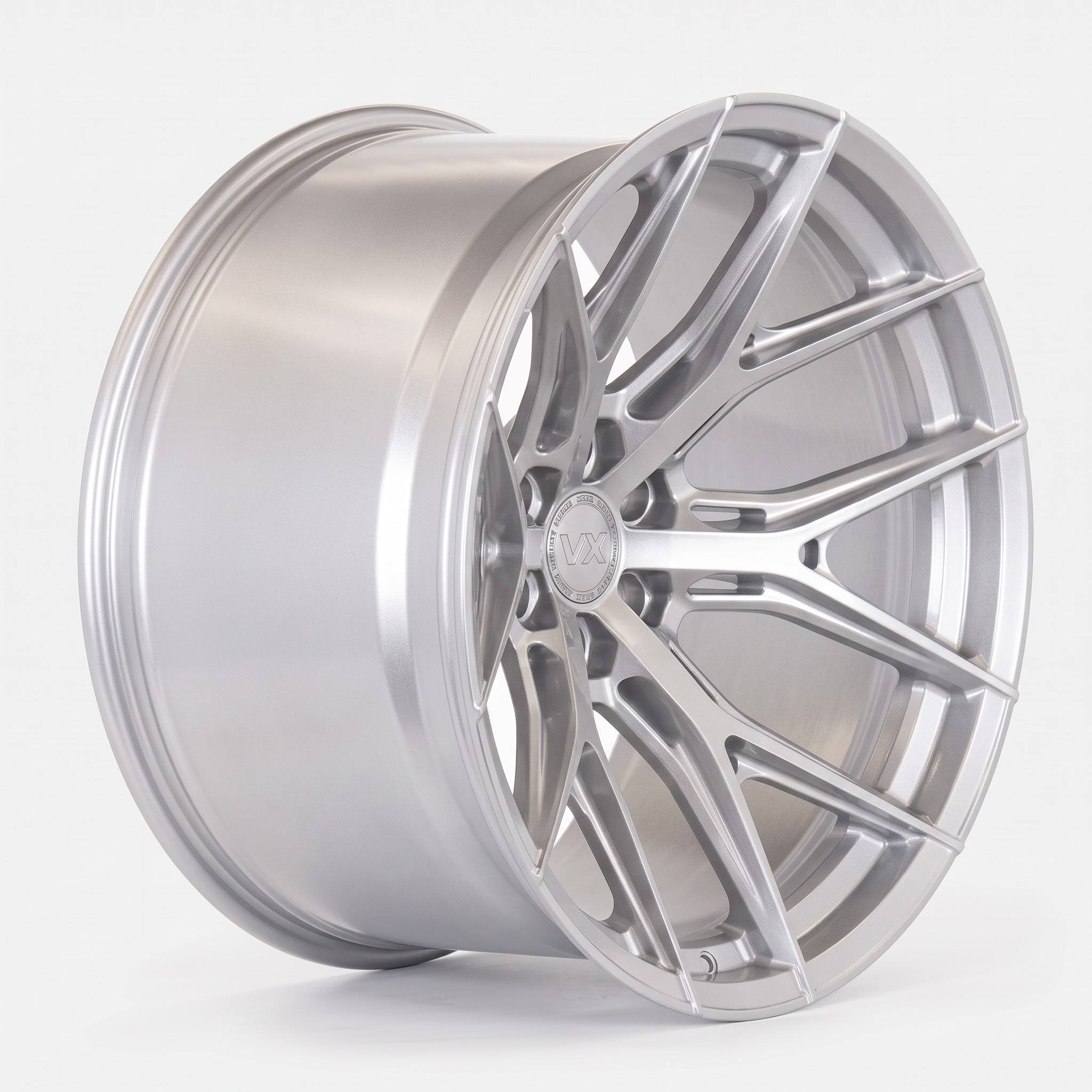

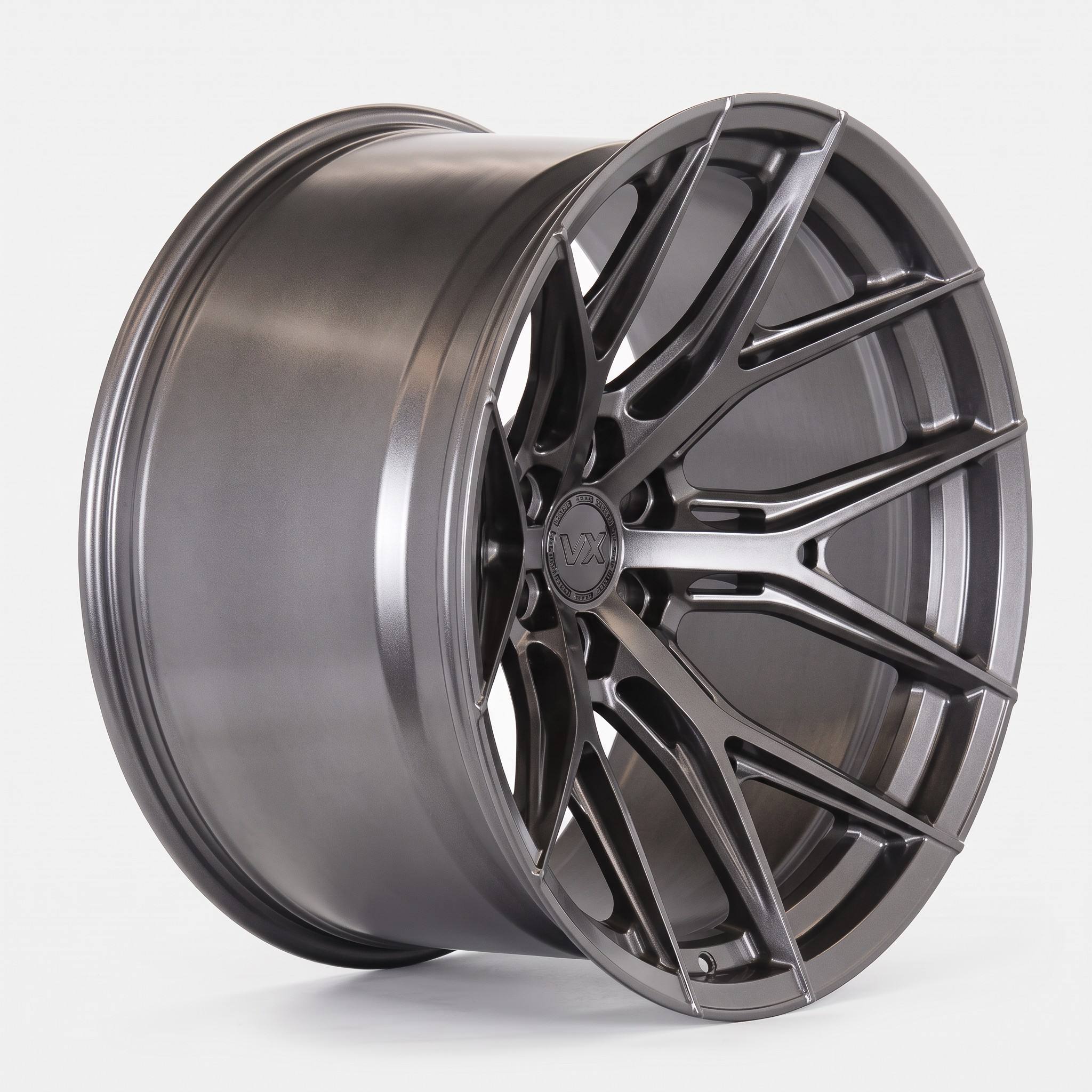

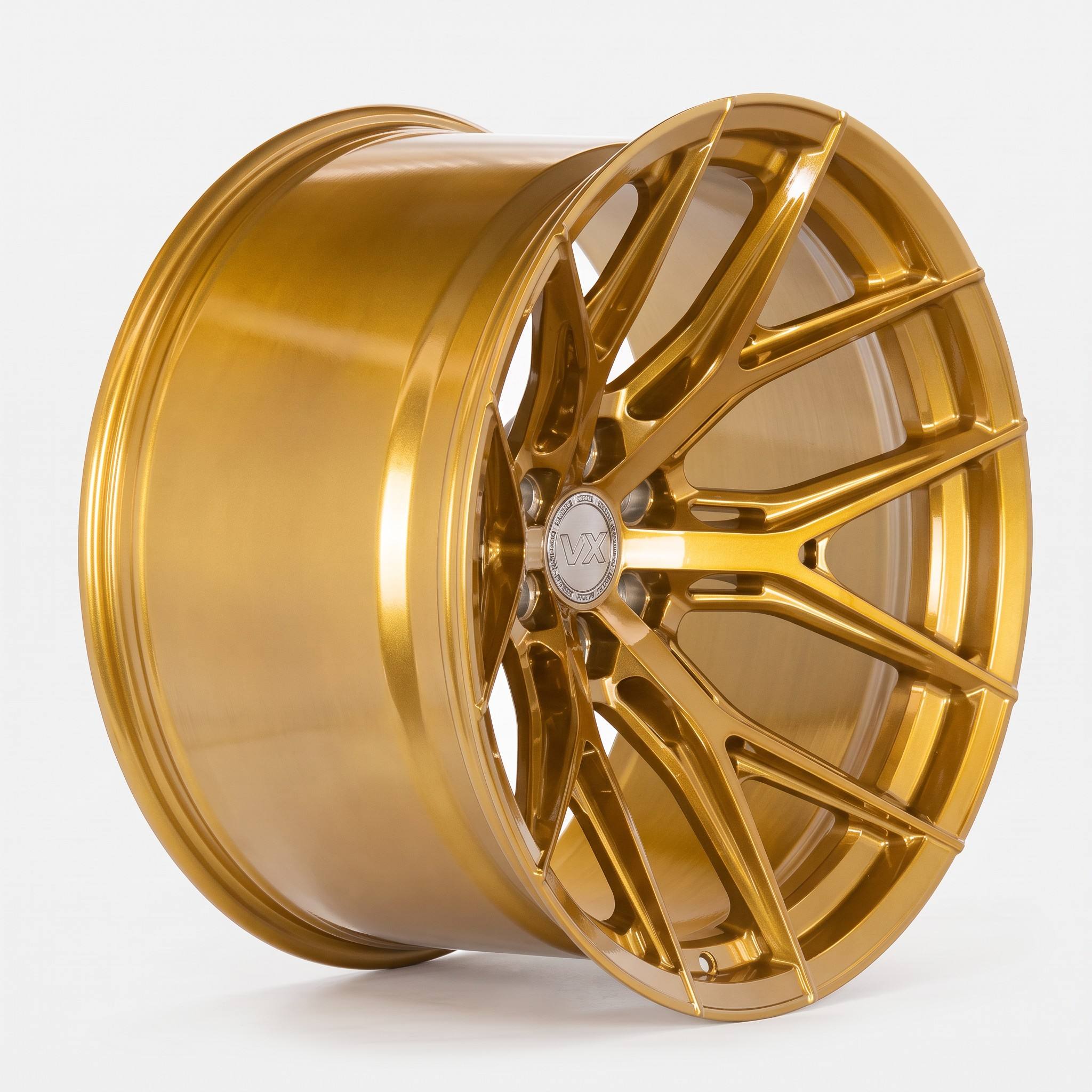

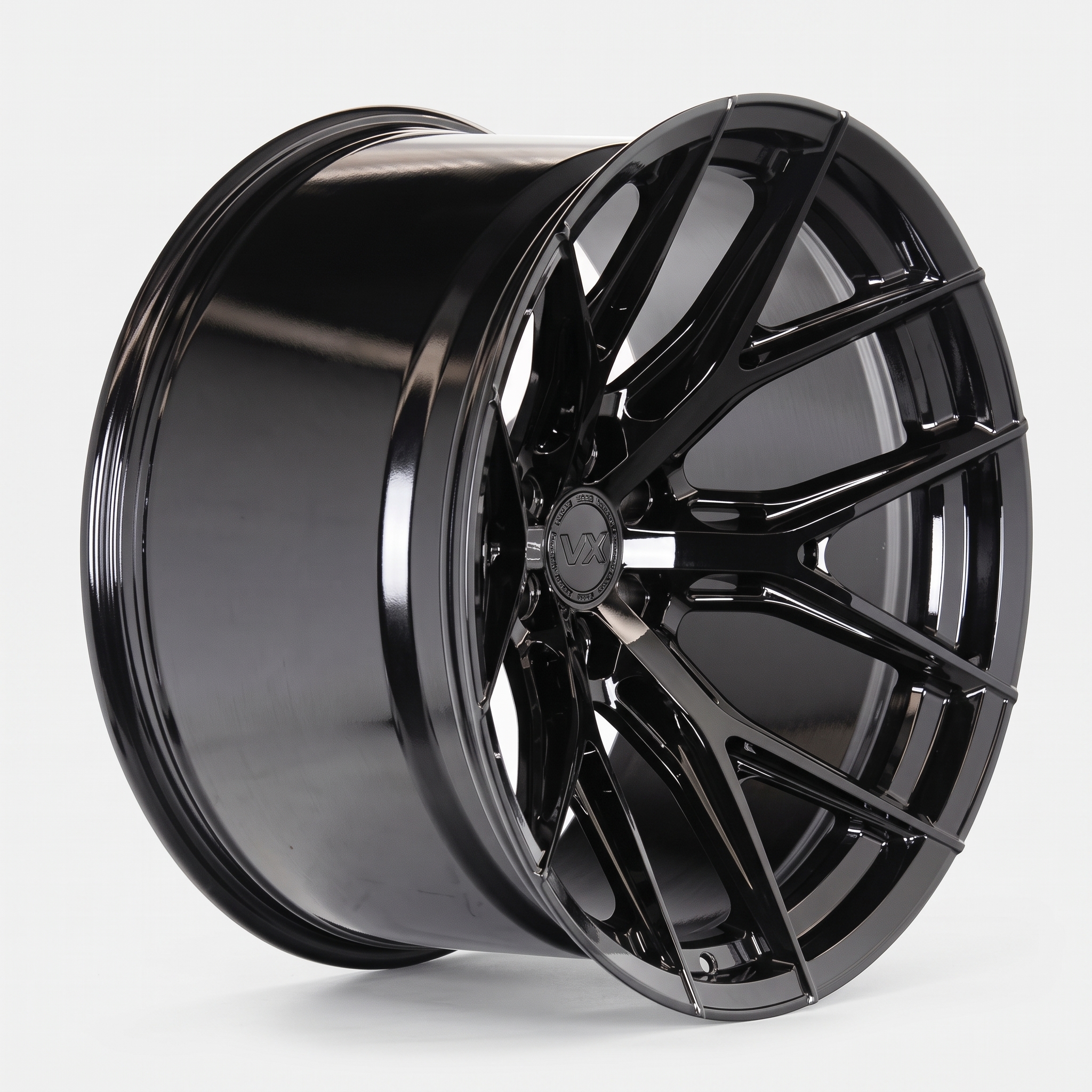

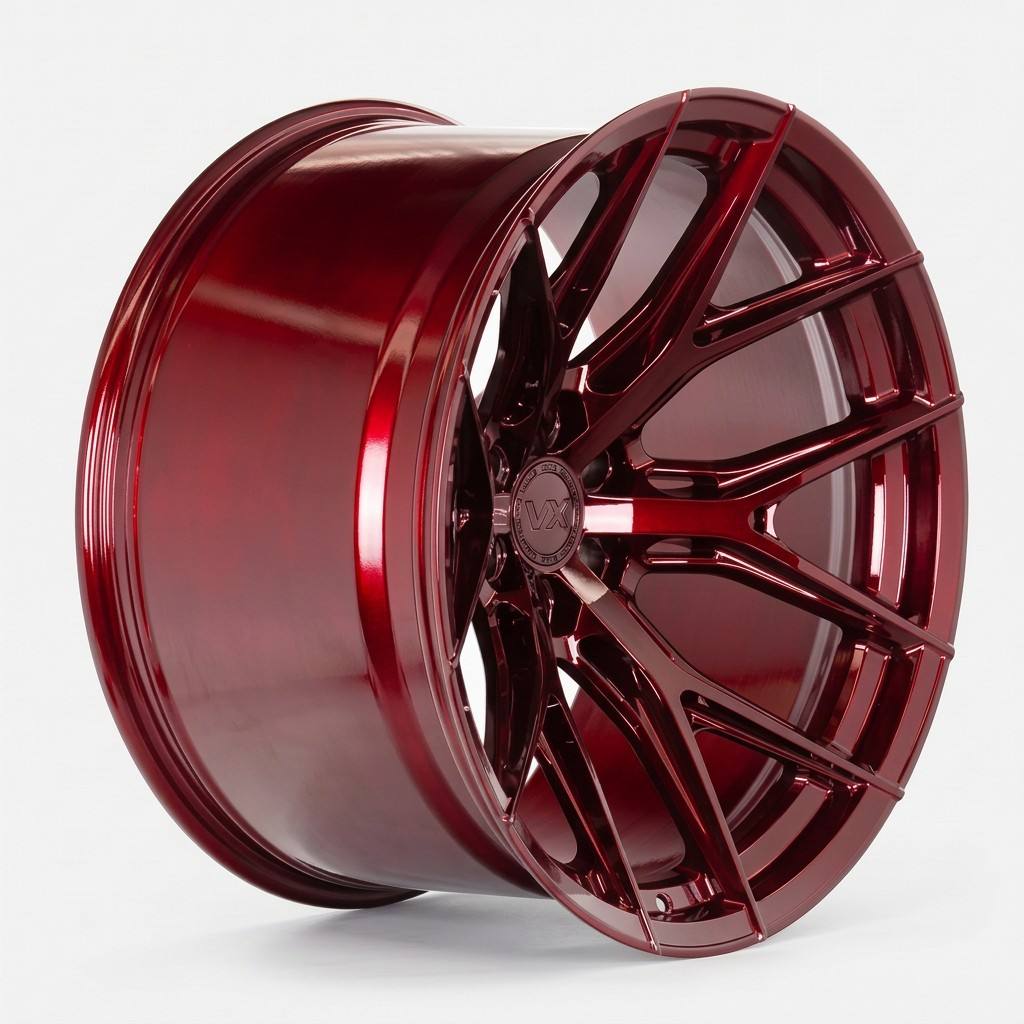

- Bespoke Hand-Finished Aesthetics: Available in 7 signature finishes: Satin Matte Black, Piano Gloss Black, Translucent Candy Red, Hyper Silver, Race Gold, Brushed Satin Bronze, and Anthracite Gunmetal Grey with multi-stage UV protective clear coats.
Detailed Technical Specifications
| Parameter | Specification Options |
|---|---|
| Design & Structure | 1-Piece Monoblock Forged / Deep Concave Split Y-Spoke (VX-1DC01) |
| Material Grade | Aerospace 6061-T6 Forged Aluminum Alloy (10,000-Ton Forged) |
| Diameter Options | 18″, 19″, 20″, 21″, 22″ (Optimized Staggered: 19″/20″ or 20″/21″) |
| Width Range | 8.5J – 12.5J (Deep Concave & Extreme Concave Profiles) |
| Bolt Patterns (PCD) | 5×112 (BMW G-Chassis / Audi / AMG), 5×120 (BMW F-Chassis), 5×114.3, 5×130 (Porsche) & Custom Bolt Patterns |
| Offset Range (ET) | ET+10 to ET+48 (Tailor-made for flush stance with zero fender rubbing) |
| Center Bore (CB) | 66.6 mm Hub-Centric (Direct fit) / Custom vehicle hub bores available |
| Finish Choices | Satin Black, Gloss Black, Hyper Silver, Race Gold, Satin Bronze, Candy Red, Gunmetal Grey |
These high-performance 1-Piece Forged Wheels provide unmatched strength-to-weight ratios and structural integrity, making them the ultimate upgrade for competitive track days and daily spirited driving.
Vehicle Fitment & Customization Guide
While this setup is natively mapped for BMW M2 G87, M3 G80, and M4 G82/G83 Competition, our engineering team routinely custom-cuts this deep concave pattern for a wide spectrum of sports cars and performance sedans:
- BMW M Series: M2 (F87 / G87), M3 (E90 / F80 / G80), M4 (F82 / G82), M5 (F90), M8 (F91/F92)
- Porsche: 911 (991 / 992 Carrera, Turbo, GT3), 718 Cayman / Boxster
- Audi RS & S Models: RS6 Avant (C8), RS5 (B9), RS7 Sportback, RS4, S5
- Mercedes-AMG: C63 AMG (W205), E63 AMG (W213), AMG GT Coupé
- American Muscle & Sports Cars: Ford Mustang GT / Dark Horse, Chevrolet Corvette (C7 / C8)
Don’t see your specific vehicle? Every order includes a complimentary 3D CAD clearance check to guarantee 100% flush fitment with zero rubbing against inner suspension struts or outer fender lips.
Frequently Asked Questions (FAQ)
Q: What are the most popular flush fitment specs for BMW M2 G87 and M3 G80?
A: The enthusiast-preferred flush stance is a staggered setup: 19×9.5J front (ET+12 to +14) paired with 20×10.5J or 20×11.0J rear (ET+12 to +15), which completely fills the flared fender arches without requiring spacers.
Q: Can I order this exact wheel design for another vehicle make (like Porsche, Audi, or Mercedes)?
A: Yes, absolutely. Because each set of our 1-Piece Forged Wheels is CNC-machined from scratch, we can customize the PCD, center bore, width, and offset specifically for your car’s exact axle dimensions and brake caliper profiles.
Q: Can these 1-Piece Forged Wheels accommodate OEM tire pressure monitoring sensors (TPMS)?
A: Yes, all valve stem drillings are 100% engineered to accept OEM BMW tire pressure sensors as well as standard aftermarket 433MHz/315MHz TPMS units.
Q: What safety standards and load ratings do these forged wheels meet?
A: Every wheel design undergoes rigorous Finite Element Analysis (FEA) and dynamic fatigue testing to meet or exceed JWL, VIA, SAE J2530, and DOT international motorsport safety standards.
Ready to configure your build or looking for alternative spoke designs? Explore our complete collection of 1-Piece Forged Wheels and custom fitments or contact our technical engineering team for a bespoke 3D CAD fitment calculation.
